Op amp uses

Two practical uses of the voltage comparator are as a flame sensor and as a heat sensor.

(i) Flame sensor

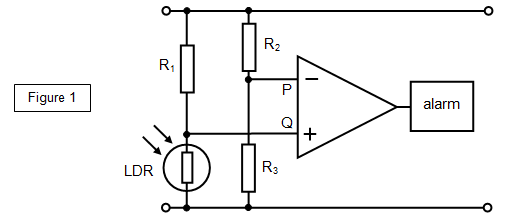

The circuit in Figure 1 might be used in a gas boiler to monitor the pilot light. The alarm is required to sound when the flame of the pilot light goes out.



A light-dependent resistor (LDR) is the sensor: its resistance is low in light and high in the dark.

When the flame is on the resistance of the LDR is low, the voltage at Q (V2) is low, (V2 - V1) is negative and the alarm is off. If the flame goes out, however, V2 rises such that (V2 - V1) becomes positive, the op amp switches to positive saturation and the alarm is switched on.


(ii) Heat sensor

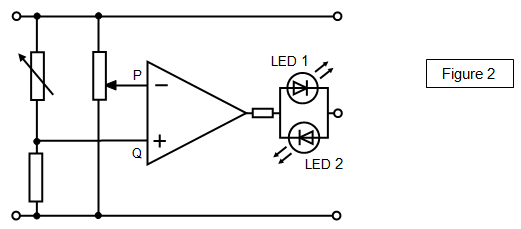

This sensor (Figure 2) is designed to operate one of two LEDs to show whether the heat sensor, the thermistor, is hot or cold.




When the thermistor is cold its resistance is large, the voltage at Q (V2) is large, and the op amp is in a positively saturated condition, that is, the output voltage (Vo) is positive. LED 1 therefore conducts.

When the thermistor warms up a point will be reached when the voltage at Q falls below that at P; (V2 - V1) is therefore negative, the output voltage is negative and LED 2 conducts.
