The Hertzsprung-Russell diagram and the evolution of stars

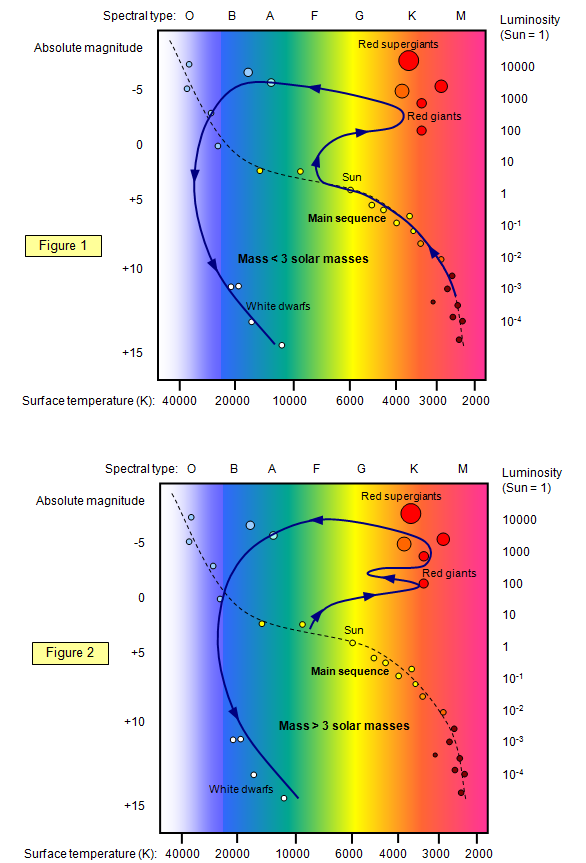

The Hertzsprung-Russell diagram can be used to show the evolution of stars. Two paths are shown:

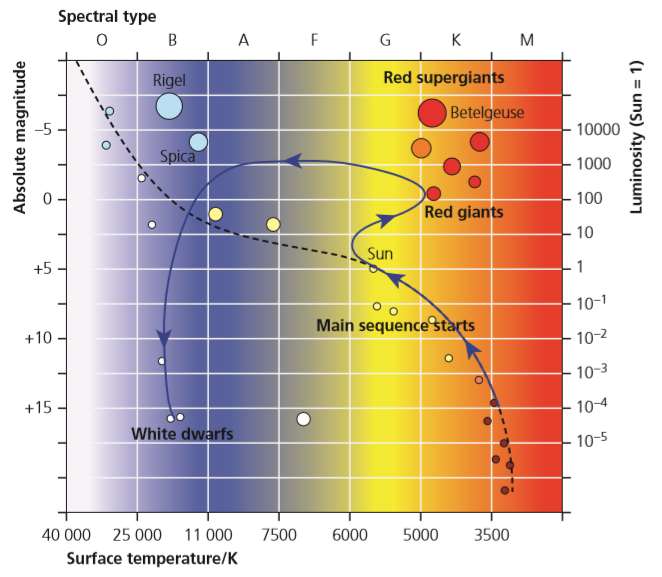

(a) Figure 1 for stars of similar mass to the Sun (<3 solar masses)
(b) Figure 2 for stars of three or more times the mass of the Sun (> 3 solar masses)
