Metre wire bridge

A practical arrangement of the Wheatstone bridge

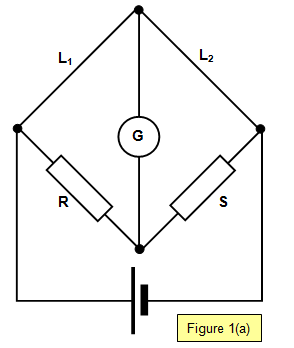

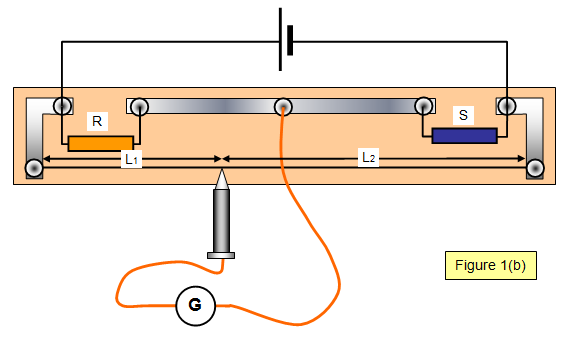

In this version the two ratio arms of the bridge are the two sections of a metre wire as shown in Figure 1. The circuit is shown in Figure 1(a) and a practical arrangement in Figure 1(b).

A standard resistance S is used and hence the value of the unknown resistance R can be found.

For this bridge the balance condition (no current in the galvanometer) is given by the equation:

Accuracy of a metre wire bridge

Measurement of resistance with a metre wire bridge Let the unknown resistor be R, the standard resistor be S and the two lengths of wire at the balance point be L₁ and L₂ .
Therefore the fractional error in R is given by:
ΔR/R = ΔS/ S +ΔL₁/L₁ + ΔL₂/L₂

Therefore the greatest accuracy is obtained when L₁ = L₂ for a given value of ΔL. The balance point must be in the centre of the wire.
